Female Euro 2 Rows 20pin 32pin 64pin PCB DIN 41612 Connector Vertical Terminals

Product Categories
Dongguan Fuyconn Electronics Co,.LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Female Euro 2 Rows 20pin 32pin 64pin PCB DIN 41612 Connector Vertical Terminals

Brand Name : FUYCONN

Model Number : 2 Row Easy Type

Certification : UL 94-V0, ROHS-certified ISO 9001:2008, ISO 14001:2004

Place of Origin : China

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T or Paypal

Supply Ability : 1 million/ month

Delivery Time : 7-10 days

Packaging Details : Vacuum Tray + Carton

connector name : eurocard connector

gender : female receptacle

no. of pin : 20pin 32pin 64pin

connector line : din41612 connector

connector type : straight pcb type

pitch : 2.54mm pitch

No. of Rows : 2 rows

Contact Type : Easy Type

Contact Now

2.54mm 2 rows pcb vertical 2*16pin 32pin Female Euro 41612 Connector, Easy Type PCB straight 2 rows 32 pin DIN41612 Connector

Female Euro Connector Easy Type 2 rows 20pin 32pin 64pin PCB DIN 41612 connector Vertical Terminals

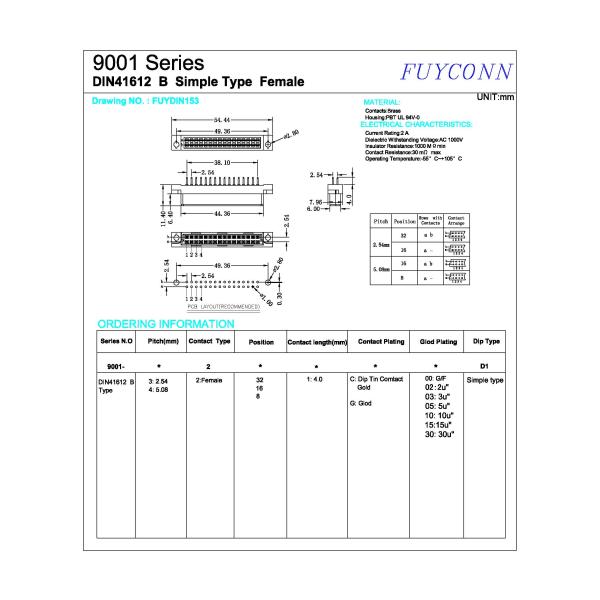

DIN 41612.pdf

DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.


The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system.DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations. 5pin 10pin, 15pin 20pin,30pin, 32pin 48pin 64pin and 96pin are available.

DIN Type 2 rows 32P Vertical Female B Type European socket DIN 41612 connector

Detail Description

1. Product Line: DIN41612 Connector
2. Product Name: Eurocard connector
3. Connector Type PCB DIN 41612 Connector
4. Connector Gender: Female
5. Number of Position: 20/32/48 pin
6.Number of rows: 2 rows
7. Contact Material: Brass
8. Contact Plating: 1U", 3U", 5U", 10U", 15U",30U"
9. Insulation Material: PBT
10.Color Gray
11. Terminal Type Straight Easy Type
12. Pitch 2.54mm or 5.08mm

Electrical Specifications

Current Rating: 2Amp
Voltage rating: AC 1000v for minute
Insulator Resistance: 1000 MΩ min.at DC500V
Contact Resistance: 30mΩ max. at DC 100MA
4. Operation Temperature: -55°C to +105°C

Technology Parameters

Female Euro 2 Rows 20pin 32pin 64pin PCB DIN 41612 Connector Vertical Terminals
